Max 160mm
Tube end deburring Round, square or profiles
OD tube deburring machines clean and remove tube sharp edges caused by sawing.
Enables simultaneous outside and inside tube burrs removal without rotating the tube.
Deburrs round, square, rectangular and many different tube and profile shapes deburring in few seconds.
Technical specifications:
OD 120 | OD 160 | |
Working capacity (Ø mm) | 10 - 120 | 10 – 160 |
No. brush stations (K) | 1 | |
Abrasive brush dimensions (mm) | (3*) 60 * Ø250 | (4*) 60 * Ø250 |
Abrasive brush speed (m/s) | 18 - 35 | 18 - 35 |
Abrasive brush motor per head (kW) | 3 | 4 |
Total power (kW) | 3.6 | 4.55 |
Consumption (A) | 7.3 | 9 |
Dimensions (mm) | 650*1100*1400 | 650*1100*1400 |
Weight (kg) | 505 | 530 |
Advantages of the machine:

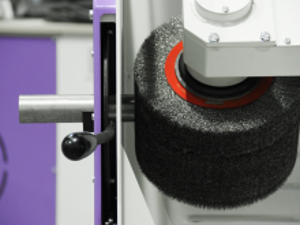

The operator does not need to rotate the tube as the wire brush rotates all around the shape of the tube, deburring all internal and external edges within few seconds.

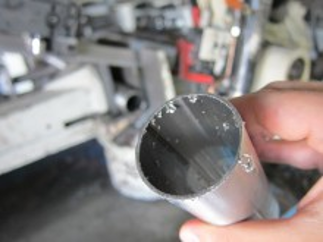

After sawing a sharp edge or a burr can be created. OD remove the burr and cleans the edges leaving them soft and safe to handle.

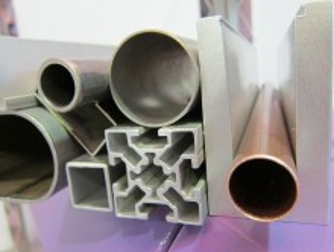

OD deburring machines deburr different shapes from round to square and rectangular tubes and even aluminium profiles, treating all the edges uniformly.
