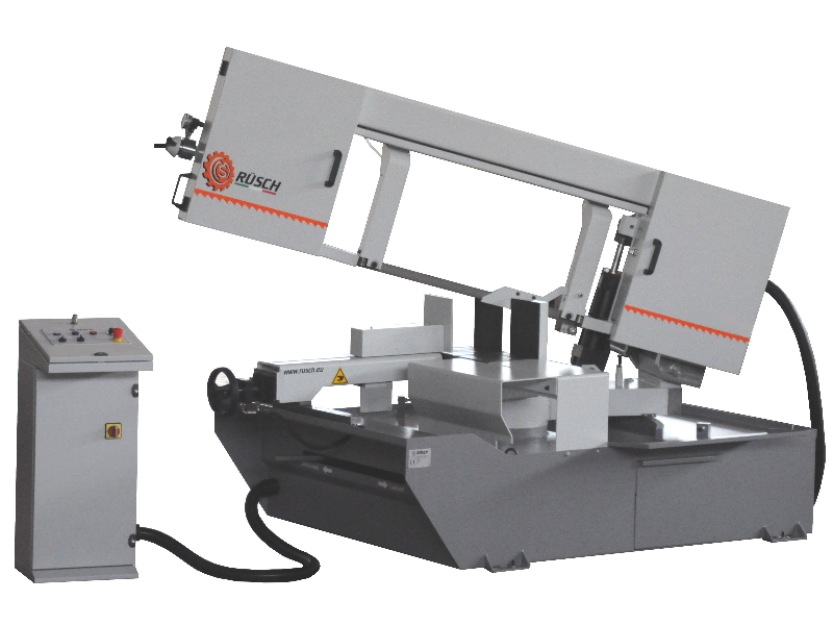

MAX 620G — MAX 620G, Semi-automatic band saw for step cutting, pivoted. Fully automatic cutting cycle management with automatic clamp closing, rapid bow approach with bar feeler, bow descent speed control via hydraulic regulator, blade speed adjustment via potentiometer during cutting, end-of-cut with automatic bow rise to the workpiece height and automatic clamp opening to release the material. Blade height 41 mm.
• Cutting range from +45° to -60°.
• Hydraulic system.
• Hydraulic console lowering adjustment.
• Hydraulic vice opening and closing (OPTIONAL).
• Touch panel for controlling manual and semi-automatic cutting cycles.
• Display with cutting information, diagnostics, and alarms.
• Console height adjustment.
• Machine stop in case of blade breakage or insufficient tension.
• Electric blade lubrication pump.
• Key-operated safety switch on the blade guard.
• Blade cleaning device.
• Mechanical stop up to +45°/-60°.
• Control panel.
Standard Equipment:
Accessories:
Cutting capacity | Technical parameters | ||
Round - Angle 90° | 500 mm | Sawing speed | 20 – 120 m/min |
Square - Angle 90° | 500 mm | Main motor | 3.0 kW |
Rectangle - Angle 90° | 620 х500 mm | Cooling Oil motor | 1.1 kW |
Round - Angle 45° | 490 mm | Cooling motor H2O | 0.11 kW |
Square - Angle 45° | 490 mm | Blade size | 5250 х 41 х 1.3 mm |
Rectangle - Angle 45° | 490 х 450 mm | Working height | 750 mm |
Round - Angle 60° | 330 mm | Dimensions, min | 1450 х 2650 х 1495 mm |
Square - Angle 60° | 320 mm | H bow blade | 500 mm |
Rectangle - Angle 60° | 250 х 450 mm | Weight | 1300 Kg |
Round - Angle - 45° | 450 mm | Color | RAL 7035 RAL 7037 |
Square - Angle - 45° | 450 mm | ||
Rectangle - Angle - 45° | 430 х 450 mm | ||
Round - Angle - 60° | 330 mm | ||
Square - Angle - 60° | 330 mm | ||
Rectangle - Angle - 60° | 330 х 450 mm |
