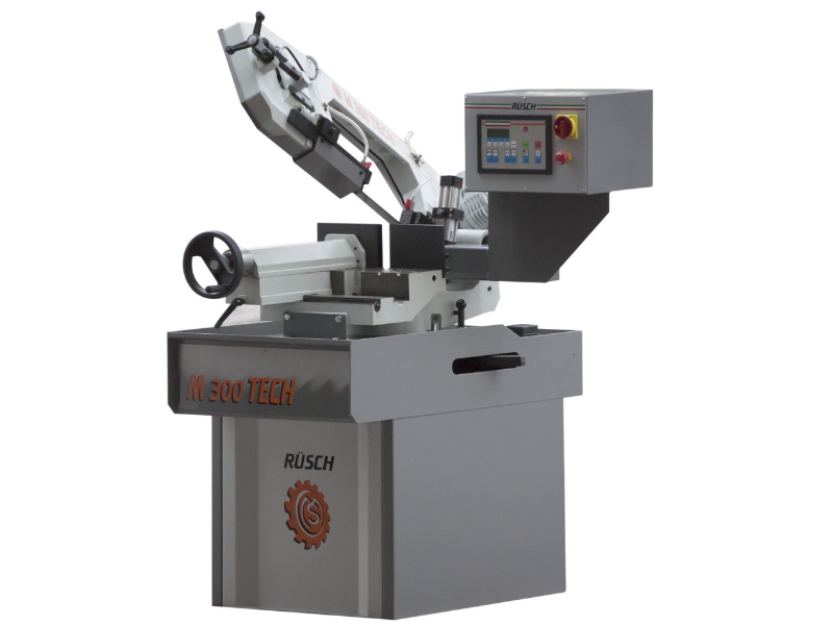

M 300 TECH

Electro-welded steel base incorporating the cooling tank with electric pump.
Cast iron arc inclined at 30° with respect to the Z axis which significantly reduces the straightening of the blade, allowing it to twist less with consequent longer life.
Flywheels mounted on precision roller bearings.
Solid structure of the blade guide arms which make them free from twisting and vibrations.
Hydraulic vice with handwheel.
Hydraulic bow descent adjustment.
Blade tensioning via handwheel. ( 1200 kg blade draw ).
Machine stop in case of blade breakage or insufficient tension.
High arch adjustment.
Stops for cutting at 0°, 45°, -60° with lever for locking at any angle.
Eccentric bow pin adjustable via 2 swiveling roller bearings.
Coolant pump connected to several nozzles that provide lubrication of the blade.
Blade guide with 4 WIDIA plates and 4 adjustable eccentric pre-alignment bearings.
Brush blade cleaning device.
Electrical system compliant with CE standards. Standard connection voltage 400V. Control voltages 24 Volt d.c.
RÜSCH® electronic microprocessor instrument for managing manual and semi-automatic cutting cycles.
Display with cutting, diagnostics and alarms.
Speed variation selectable between 36 and 70 m/min via selector on the control panel.
