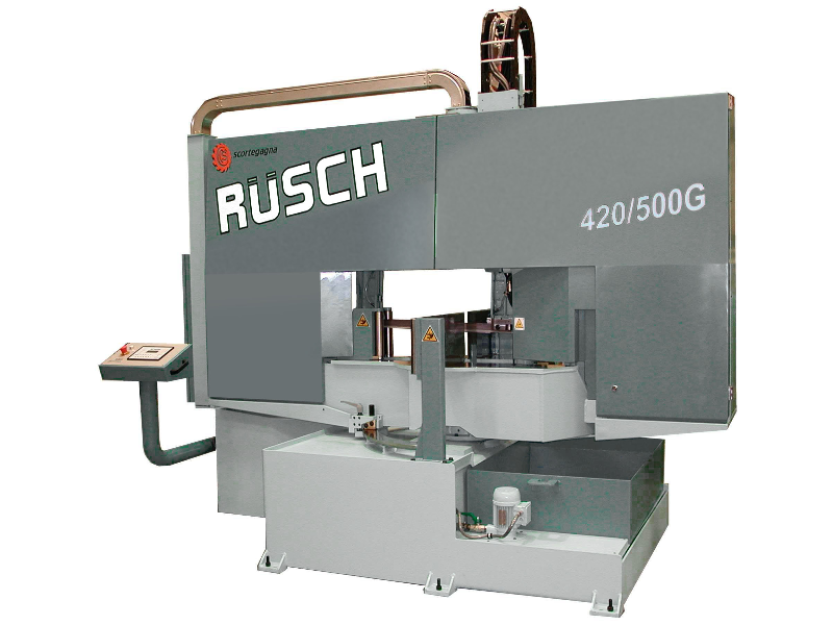

420/500G, semi-automatic bandsawing machine for graded cuts, with two load-bearing columns with sliding on recirculating ball linear guides, table rotation with hydraulic locking at the desired degree.

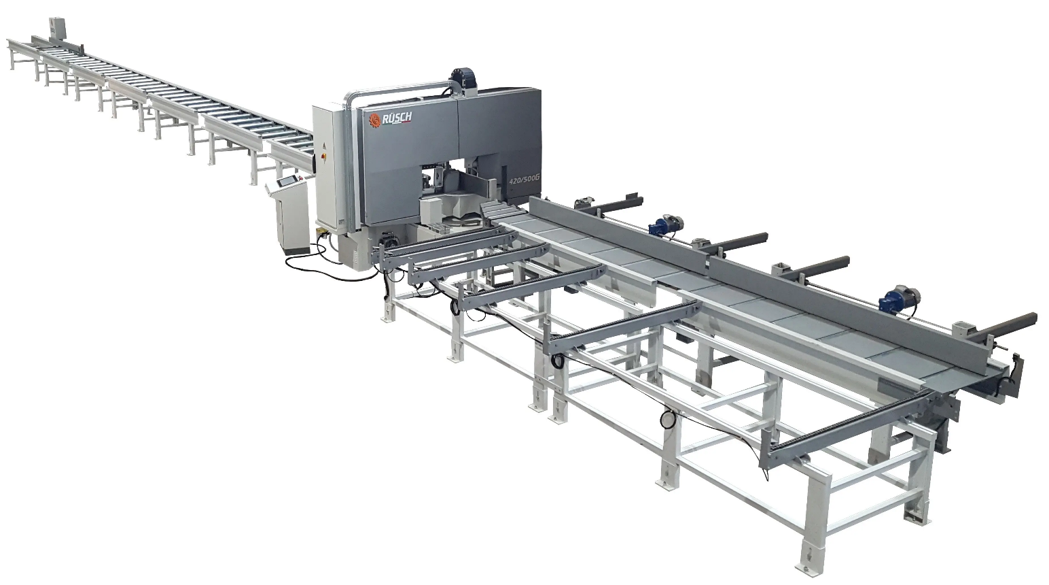

Ideal sawing machine on automatic cutting line configurations with loading and unloading.
CNC swivel base rotation.
Digital display of the cutting angle.
Machine stop system in case of blade breakage.
Pressure reducing valve for the workpiece closing vice ( allows you to cut thin tubes without deforming them ).
Arc return cycle over the piece once the cut has been made.
Oil pump shutdown timer if the machine is not used.
Inverter motor variator which allows long life of the mechanical parts and no loss of power.
Cutting capacity | Technical parameters | ||
Round - Angle 90° | 420 mm | Sawing speed | 25 – 130 m/min |
Square - Angle 90° | 420 mm | Main motor | 4.0 kW |
Rectangle - Angle 90° | 520 х420 mm | Cooling Oil motor | 1.5 kW |
Round - Angle 45° | 320 mm | Cooling motor H2O | 0.4 kW |
Square - Angle 45° | 320 mm | Blade size | 5890 х 41 х 1.3 mm |
Rectangle - Angle 45° | 320 х 420 mm | Working height | 950 mm |
Round - Angle 60° | 200 mm | Dimensions, min | 1450 х 2650 х 1495 mm |
Square - Angle 60° | 200 mm | H bow blade | 630 mm |
Rectangle - Angle 60° | 200 х 420 mm | Weight | 2800 Kg |
Round - Angle 70° | 100 mm | Color | RAL 7035 RAL 7037 |
Square - Angle 70° | 100 mm | Oil tank | 18 L |
Rectangle - Angle 70° | 100 х 420 mm | Coolant | 100 L |
Round - Angle - 45° | 320 mm | ||
Square - Angle - 45° | 320 mm | ||
Rectangle - Angle - 45° | 320 х 420 mm | ||
Round - Angle - 60° | 200 mm | ||
Square - Angle - 60° | 200 mm | ||
Rectangle - Angle - 60° | 200 х 420 mm |
