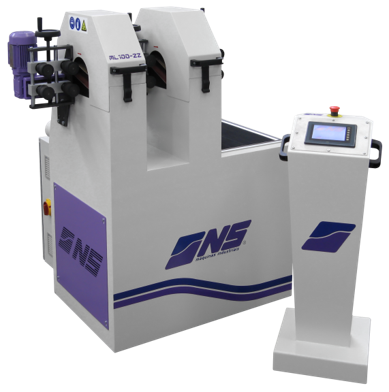

General Description:
Works with straight, round, and oval pipes
Maximum diameter Ø114 mm
Excellent machining results: thanks to the planetary machining system
Possibility of machining with multiple centers and different belt grain sizes
Includes:
1. Automatic feed with 3 (ML100 2Z) or 4 units (ML100 3Z) with a double feed roller
2. User-friendly touchscreen, easy to navigate
3. Inverter for automatic feed, controlled by a digital display
4. Inverter for processing tapes, controlled by a digital display
5. Emergency magnetic switch for each center
6. Photocell sensor for automatic opening
7. CE safety system
8. Software in all languages
Technical specifications:
ML100 2Z | ML100 3Z | |
Working size (Ø mm) | 10 - 114 | 10 - 114 |
Automatic feed speed (m/m) number 1 and 2 | 1 - 5 | 1 - 5 |
Belt speed (m/sec) number 3 | 11.5 – 35 | 11.5 – 35 |
Belt motor (kW) | 2 x 3 | 3 x 3 |
Wheel motor (kW) | 2 x 1,5 | 3 x 1,5 |
Feed motor power (kW) | 3 x 0,12 | 4 x 0,12 |
Belt size (mm) | 940 x 50 | 940 x 50 |
Consumption (A) | 30 | 40 |
Dimensions (mm) | 900x1200x1400 | 900x1600x1400 |
Weight (kg) | 500 | 600 |
