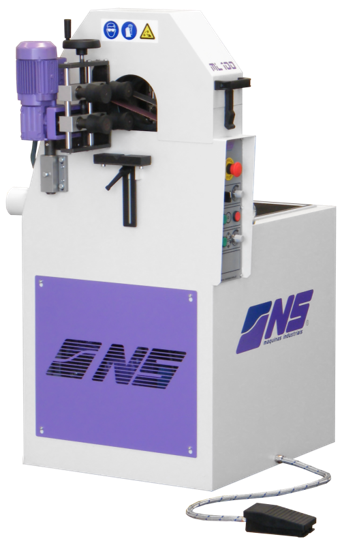

Basic Description:
Works with straight, round, and oval pipes
Maximum diameter Ø76.2 mm
Excellent machining results: thanks to the planetary machining system
Possibility of machining with multiple centers and different belt grain sizes
Includes:
1. Automatic feed with 2 double feed rollers
2. Inverter for automatic feed, controlled by a digital display
3. Inverter for processing belts
4. Emergency magnetic switch for each center
5. Pedal for unlocking and opening belts
6. CE safety system
Working size (Ø mm) | 10 – 76,2 |
Automatic feed speed (m/m) number 1 and 2 | Ручная или 1 - 5 |
Belt speed (m/sec) number 3 | 20 или 3 - 22 |
Belt motor (kW) | 2.2 |
Wheel motor (kW) | 1,5 |
Feed motor power (kW) | 2 x 0,12 |
Belt size (mm) | 860 x 25 x 2 |
Consumption (A) | 10 |
Dimensions (mm) | 750 x 1000 x 1300 |
Weight (kg) | 230 |
